- 規格型號：42838720
- 頻率：13.56MHz
- 尺寸：13.2*4.8mm
- 產品描述：DF22AA1-13.560MHZ-T倒車影像晶振,D系列高精度晶振,MMD美國49SMD晶振,美國MMDCOMP晶振公司，MMD晶振，D系列晶振，49SMD晶振，DF22AA1-13.560MHZ-T晶振，超小型晶振，無源晶振，圓柱晶振，貼片晶振，陶瓷晶振，液晶儀表...

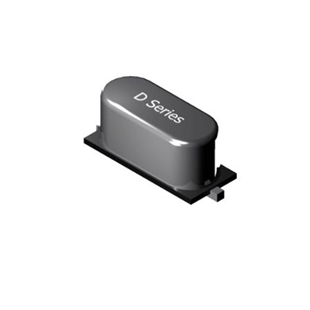

DF22AA1-13.560MHZ-T倒車影像晶振,D系列高精度晶振,MMD美國49SMD晶振
航欄(10).jpg)
DF22AA1-13.560MHZ-T倒車影像晶振,D系列高精度晶振,MMD美國49SMD晶振,美國MMDCOMP晶振公司，MMD晶振，D系列晶振，49SMD晶振，DF22AA1-13.560MHZ-T晶振，超小型晶振，無源晶振，圓柱晶振，貼片晶振，陶瓷晶振，液晶儀表盤晶振，進口晶振，美國晶振，超小型晶振，電腦主板晶振，石英晶振，無源晶振，顯示器晶振，環保無鉛晶振，專業給市場提供各種石英晶振,貼片晶振,有源晶振等產品.HC-49/S SMD晶體，第三引腳接地選項，寬頻率范圍，基本或第三OT AT切割。
| 頻率范圍 | 3.6864MHz |
| 頻率容差 | (See Part Number Guide for Options) |
| 工作溫度 | (See Part Number Guide for Options) |
| 儲存溫度 | -55°C to +125°C |
| 老化 | ±5ppm / first year Max |
| 分流電容 | 7pF Max |
| 負載電容 | 20pF Standard(See Part Number Guide for Options) |

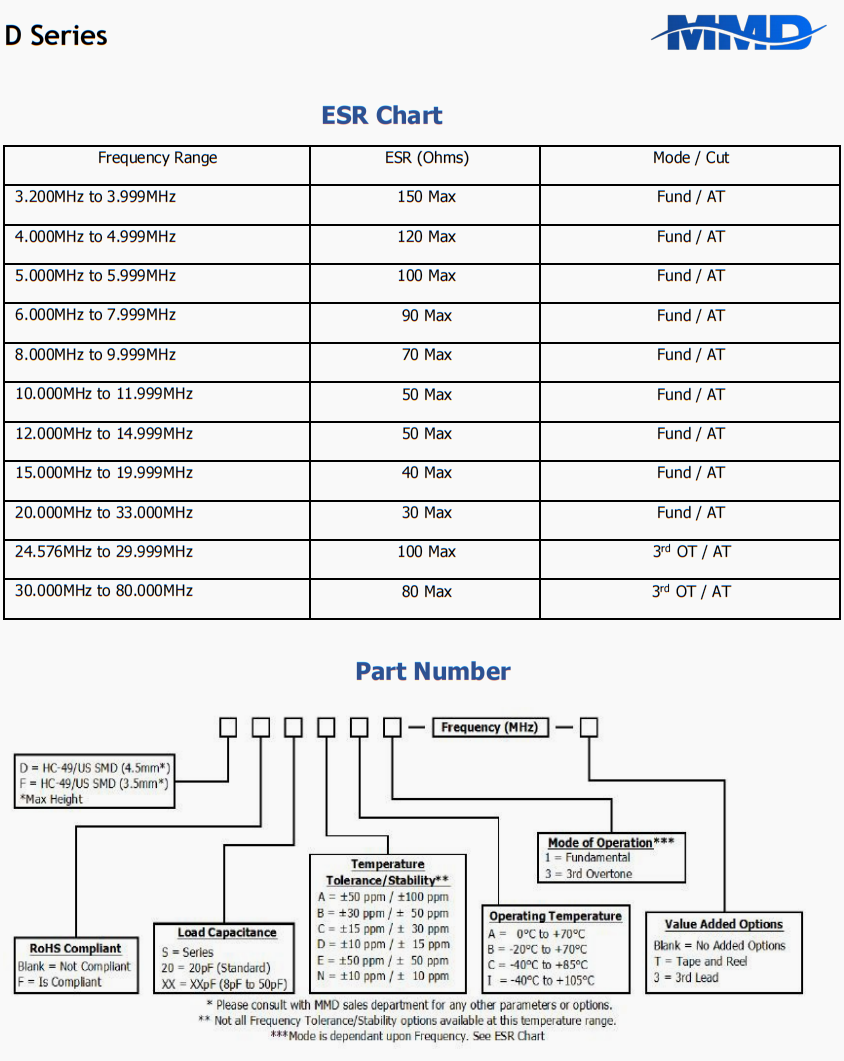

| 等效串聯電阻 | See ESR Chart |
| 工作模式 | See ESR Chart |
| 驅動電平 | 1mW Max |
.jpg)

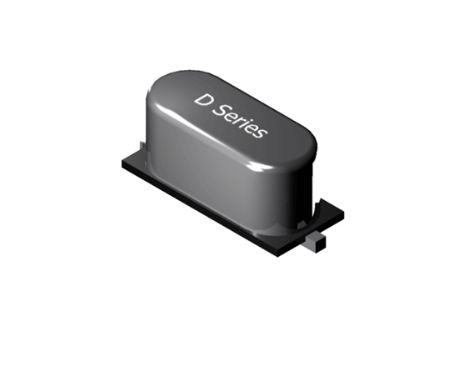

DF22AA1-13.560MHZ-T倒車影像晶振,D系列高精度晶振,MMD美國49SMD晶振
| 編碼 | 品牌 | 型號 | 頻率 | 頻率穩定度 | 頻率容差 | 負載電容 |
| DF10CC3-60.000MHZ-T | MMD | D | 60 MHz | ±30ppm | ±15ppm | 10 pF |
| DF18AA1-24.000MHZ-T | MMD | D | 24 MHz | ±100ppm | ±50ppm | 18 pF |
| DF18BA1-14.31818MHZ-T | MMD | D | 14.31818 MHz | ±50ppm | ±30ppm | 18 pF |
| DF18BA1-25.000MHZ-T | MMD | D | 25 MHz | ±50ppm | ±30ppm | 18 pF |
| DF18BA1-27.000MHZ-T | MMD | D | 27 MHz | ±50ppm | ±30ppm | 18 pF |
| DF18BB1-8.000MHZ-T | MMD | D | 8 MHz | ±50ppm | ±30ppm | 18 pF |
| DF18BC1-19.200MHZ-3T | MMD | D | 19 MHz | ±50ppm | ±30ppm | 18 pF |
| DF18CC1- 25.000MHZ-T | MMD | D | 25 MHz | ±30ppm | ±15ppm | 18 pF |
| DF18CC1-25.000MHZ | MMD | D | 25 MHz | ±30ppm | ±15ppm | 18 pF |
| DF20AA1-25.000MHZ-T | MMD | D | 25 MHz | ±100ppm | ±50ppm | 20 pF |
| DF20AA1-3.6864MHZ-T | MMD | D | 3.6864 MHz | ±100ppm | ±50ppm | 20 pF |
| DF20AA1-4.9152MHZ-T | MMD | D | 4.9152 MHz | ±100ppm | ±50ppm | 20 pF |
| DF20AC1-10.000MHZ | MMD | D | 10 MHz | ±100ppm | ±50ppm | 20 pF |
| DF20AC1-11.0592MHZ-T | MMD | D | 11.0592 MHz | ±100ppm | ±50ppm | 20 pF |
| DF20AC1-14.7456MHZ-T | MMD | D | 14.7456 MHz | ±100ppm | ±50ppm | 20 pF |
| DF20AC1-25.000MHZ-T | MMD | D | 25 MHz | ±100ppm | ±50ppm | 20 pF |
| DF20AC1-3.6864MHZ-T | MMD | D | 3.6864 MHz | ±100ppm | ±50ppm | 20 pF |
| DF20BA1-13.500MHZ-T | MMD | D | 13.5 MHz | ±50ppm | ±30ppm | 20 pF |
| DF20BA1-20.000MHZ-T | MMD | D | 20 MHz | ±50ppm | ±30ppm | 20 pF |
| DF20BB1-25.000MHZ-T | MMD | D | 25 MHz | ±50ppm | ±30ppm | 20 pF |
| DF20CC1-3.6864MHZ-T | MMD | D | 3.6864 MHz | ±30ppm | ±15ppm | 20 pF |
| DF20EB1-20.000MHZ-T | MMD | D | 20 MHz | ±50ppm | ±50ppm | 20 pF |
| DF20EC1-20.000MHZ-T | MMD | D | 20 MHz | ±50ppm | ±50ppm | 20 pF |
| DF20EC1-6.000MHZ-T | MMD | D | 6 MHz | ±50ppm | ±50ppm | 20 pF |
| DF22AA1-13.560MHZ-T | MMD | D | 13.56 MHz | ±100ppm | ±50ppm | 22 pF |
| DF32BB1-27.000MHZ-T | MMD | D | 27 MHz | ±50ppm | ±30ppm | 32 pF |
| DFSBB1-25.000MHZ-T | MMD | D | 25 MHz | ±50ppm | ±30ppm | |
| DSAA1-20.000MHZ | MMD | D | 20 MHz | ±100ppm | ±50ppm | |
| FF10AC1-13.560MHZ-T | MMD | F | 13.56 MHz | ±100ppm | ±50ppm | 10 pF |
| FF18AA1-12.000MHZ-T | MMD | F | 12 MHz | ±100ppm | ±50ppm | 18 pF |
| FF18EA1-14.7456MHZ-T | MMD | F | 14.7456 MHz | ±50ppm | ±50ppm | 18 pF |
| FF20AC1-8.000MHZ-T | MMD | F | 8 MHz | ±100ppm | ±50ppm | 20 pF |
| FF30BC1-25.000MHZ | MMD | F | 25 MHz | ±50ppm | ±30ppm | 30 pF |
| FF40BI1-8.704MHZ-T | MMD | F | 8.704 MHz | ±50ppm | ±30ppm | 40 pF |
| MMC-473-110.76625MHZ | MMD | MMC | 110.76625 MHz | ±25ppm | ±15ppm | |
| MMC-474-100.0325MHZ | MMD | MMC | 100.0325 MHz | ±25ppm | ±15ppm | |
| T10GC1-26.000MHZ-T | MMD | T | 26 MHz | ±30ppm | ±10ppm | 10 pF |
| T12BC1-19.200MHZ-T | MMD | T | 19.2 MHz | ±50ppm | ±30ppm | 12 pF |
| T18BC1-13.000MHZ-T | MMD | T | 13 MHz | ±50ppm | ±30ppm | 18 pF |
| T18BD1-24.000MHZ-T | MMD | T | 24 MHz | ±50ppm | ±30ppm | 18 pF |
| WC146SMF-32.768KHZ-T | MMD | WC146SM | 32.768 kHz | ±20ppm | 12.5 pF | |
| WC26SMFC-32.768KHZ-T | MMD | WC26SM | 32.768 kHz | ±10ppm | 12.5 pF | |
| X20AB1-16.000MHZ-T | MMD | X | 16 MHz | ±100ppm | ±50ppm | 20 pF |
